09 0106 79 03 | binder
Jack, 3 pole, solder connection, screw locking, straight, 09 0106 79 03
Unit Price (€ / pc.)
31.1304 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
31.13 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1304 €
10 pcs.
27.3938 €
50 pcs.
25.5136 €
150 pcs.
24.3950 €
500 pcs.
23.1574 €
*incl. VAT plus shipping costs
Subject to prior sale

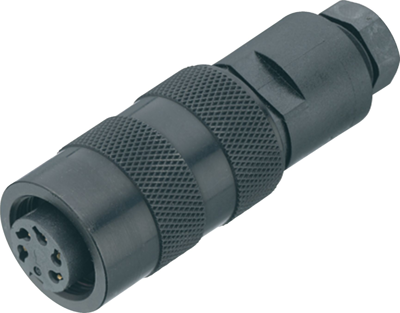

Female cable connector, 09-0106-79-03, Franz Binder
M16 IP67 Female connector, poles 3 DIN, 6.0-8.0 mm, unshielded, solder, IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| Orientation | straight | |
| Shell Material | PA | |
| Pin number | 3 pole | |
| Cable cross-section | 0.75 mm² | |
| Contact connection | solder connection | |
| Cable diameter | 6 to 8 mm | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
