09 0102 79 02 | binder
Jack, 2 pole, solder connection, screw locking, straight, 09 0102 79 02
Unit Price (€ / pc.)
22.3601 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.36 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3601 €
10 pcs.
21.0273 €
50 pcs.
19.7659 €
100 pcs.
18.5759 €
*incl. VAT plus shipping costs
Subject to prior sale

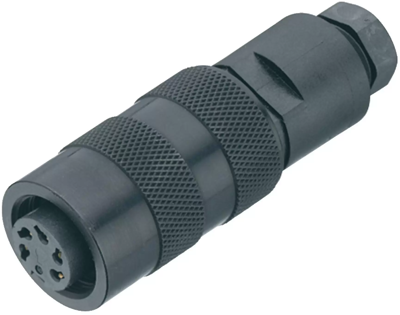

Female cable connector, 09 0102 79 02, binder

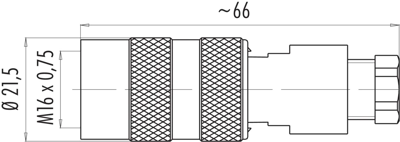

M16 IP67 Female cable connector, Contacts: 2, 6.0-8.0 mm, unshielded, solder, IP67.
Technical specifications
| Cable diameter | 6 to 8 mm | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 2 pole | |
| Version | jack | |
| Additional parts | equipped | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
