09 0060 00 05 | binder

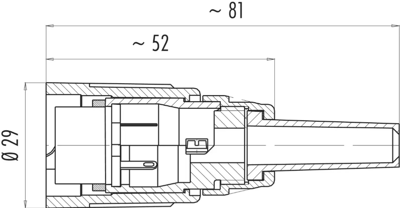

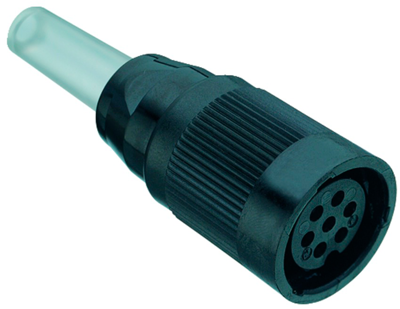

Jack, 5 pole, solder cup, Bayonet locking, straight, 09 0060 00 05
Industrial connector, type Binder 690.
Robust design with bayonet lock.; Contacts: copper tin. Contact finish: silver-plated,. Cable connection:solder contacts, 1.5 mm². Contact block: PBT UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 2950 V. Contact resistance:max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.
Female cable connectors with bayonet lock, type 690.
Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0060-00-05, 5-pole, 250 V/10 A
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | aluminum alloy | |
| Cable diameter | 5 to 8 mm | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | Bayonet locking |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Order No.:
70F8997
Manufacturer SKU:
09 0059 00 05
