UPS DinRail Supercap, UPSI-2412DP2
This item is no longer available.
As an alternative, we recommend the following item:
UPS DinRail SupercapUPSI-2415DP2
Order No.: 70C1574
Manufacturer: Bicker Elektronik
per pc. 593.81 € *

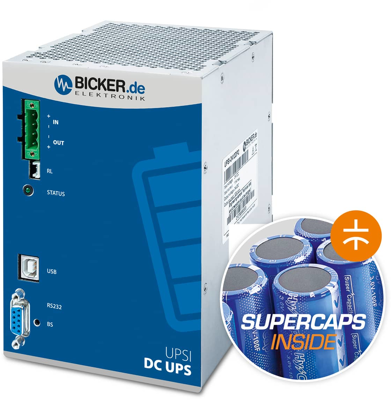

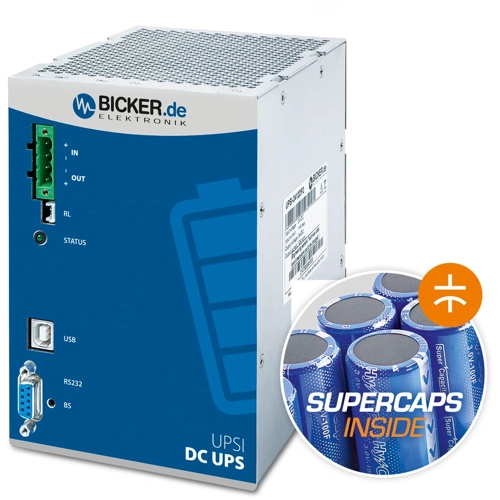

UPS, UPSI-2412DP2, Bicker Elektronik
The compact DC UPS modules UPSI-2412DP2 in a robust DIN rail housing are ideally suited for long-term use in control cabinet applications and decentralized solutions for protecting embedded industrial PCs, controls, motor drives, sensors, measurement devices, safety technology and many more. The UPS comes with USB & RS232 interface and provides a capacity of 13.5kJ in up to 500,000 cycles. Extended functionality is available via the UPSGen2 configuration software.
Features
- Powerful 24 V DC USV (DIN rail version)
- Integrated Supercap Pack 13,5kJ
- Up to 500 000 cycles
- Intelligent input current detection
- Regulated output voltage in battery mode
- Minimum load detection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 10 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 22.8-30 VDC | |
| Power | 240 W | |

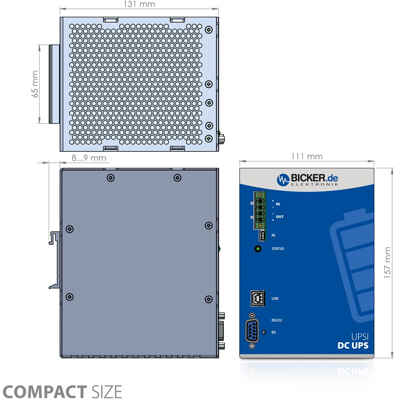

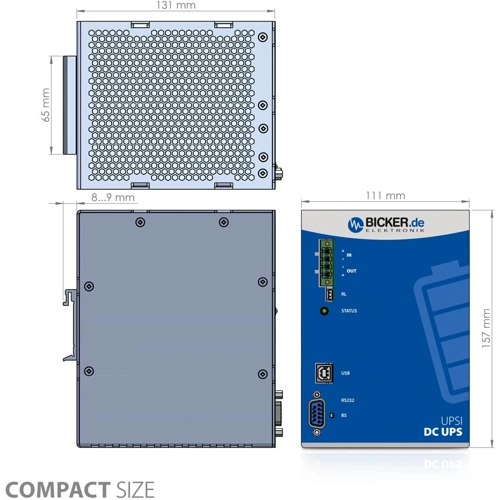

| Length | 131 mm | |
| Width | 111 mm | |
| Height | 157 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
