BP-LFP-1325S | Bicker Elektronik

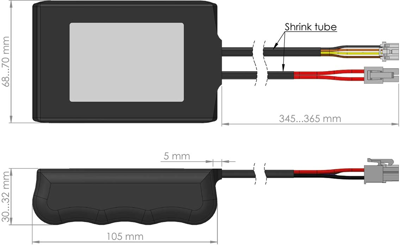

Lithium iron phosphate-battery, 13.2 V, 2.5 Ah, 105 x 70 x 32 mm, connector, BP-LFP-1325S
Unit Price (€ / pc.)
201.11 € *
Available: 3 pcs.
Leadtime: 1 Week **

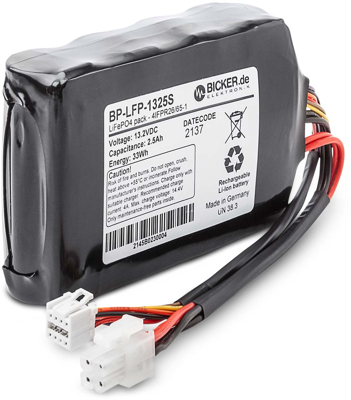

Battery pack, BP-LFP-1325S, Bicker Elektronik
The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offers a high energy density and is therefore ideally suited for use in particularly demanding applications in the industrial environment and medical technology.
Features
- System present function
- Integrated temperature sensor
- Very high storage capability
- Ideal for long backup time
- 100% lead and cadmium free
- 10 years long-life battery pack
Technical specifications
| Technology | lithium iron phosphate | |
| Rated voltage | 13.2 V | |
| Nominal capacity | 2.5 Ah | |
| Length | 105 mm | |
| Width | 70 mm | |
| Height | 32 mm | |
| Weight | 340 g | |
| Connection | connector | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 55 °C | |
| Usage | system integration |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85076000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
