7386R10KL.25 | BI Technologies

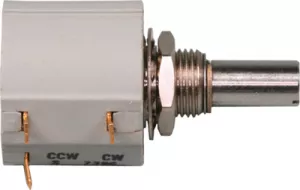

Wire-wound potentiometer, 3 turns, 10 kΩ, 1.5 W, linear, solder lug, 7386R10KL.25
Unit Price (€ / pc.)
44.1728 € *
Available: 43 pcs.
Leadtime: 24 Weeks **
Total Price:
44.17 € *
Price list
Quantity
Price per unit*
1 pcs.
44.1728 €
10 pcs.
38.9011 €
20 pcs.
37.8063 €
40 pcs.
36.7591 €
160 pcs.
34.6409 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound multi-turn potentiometers, 3 turns, type BI technologies 7386.
With bushing mount thread 3/8-32; Adjustment range (electrical): 3 turns (1080°). Load rating: 1.5 W at +70 °C (0 at +125 °C). Test voltage (RMS): 1000 V. Linearity: ±0.25 %. Tolerance: ±5.0 %. Temperature coefficient: ±20.
Type: 10K
Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | Lötöse | |
| Version | Draht-Wendelpotentiometer | |
| Width | 19.1 mm | |
| Rotary range, electrical | 1080 ° | |
| Mechanic rotary range | 1080 ° | |
| axle diameter | 6.35 mm | |
| Length | 22.2 mm | |
| Power | 1.5 W | |
| max. number of revolutions | 3 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | gewinkelt | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
