3-973-15 | Bernstein

ESD side cutter, 125 mm, 80 g, cut capacity (1.6/0.8 mm/–/–), 3-973-15

Order No.: 05L4614

EAN: 4099891354602

MPN:

3-973-15

Image may differ

Key Specification:

Version side cutter

ESD protection Yes

1000V Insulated No

Length 125 mm

Weight 80 g

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

ESD high precision side cutter, 120 mm, 85 g, cut capacity (1.6/1.3/0.7 mm/–), ES5150.CR.BG

Order No.: 02L7007

Manufacturer: ideal-tek

per pc. 60.3687 € *

Go to product

*incl. VAT plus shipping costs

Description

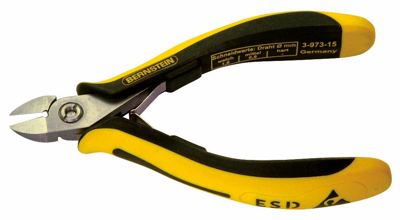

Electronic technician's special ESD pliers, type Bernstein TECHNIC line.

Made of ball bearing steel (chrome steel), precision joint with screw system (precise alignment of the cutting edges without play), reflection-free surface, double leaf spring and ergonomic finger protection sleeves; Cutting edge hardness: 63 to 65 HRC.

Diagonal cutters with slim rounded head.

Head width: 12.5 mm. Length: 125 mm. Weight: 80 g.

Technical attributes (type, version, cutting values (soft/medium-hard/hard wire)): 3-973-15, without facet, 1.6/0.8/- mm

Technical specifications

Filter	Property	Value
	Weight	80 g
	Material	ball bearing steel
	Version	side cutter
	Cutting edge	without facet
	1000V Insulated	No
	Cutting capacity (medium-hard)	0.8 mm
	ESD protection	Yes
	Cutting capacity (soft)	1.6 mm
	Length	125 mm
