3-967-15 | Bernstein

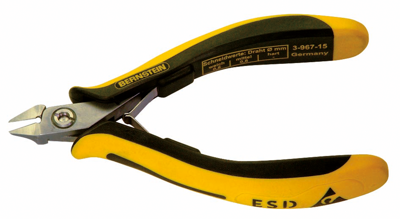

ESD side cutter, 120 mm, 75 g, cut capacity (0.8/0.6 mm/–/–), 3-967-15
Electronic technician's special ESD pliers, type Bernstein TECHNIC line.
Made of ball bearing steel (chrome steel), precision joint with screw system (precise alignment of the cutting edges without play), reflection-free surface, double leaf spring and ergonomic finger protection sleeves; Cutting edge hardness: 63 to 65 HRC.
Diagonal cutters with slim, recessed head.
Head width: 10 mm. Length: 120 mm. Weight: 75 g.
Technical attributes (type, version, cutting values (soft/medium-hard/hard wire)): 3-967-15, with facet, 0.8/0.6/- mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | side cutter | |
| ESD protection | Yes | |
| 1000V Insulated | No | |
| Length | 120 mm | |
| Weight | 75 g | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 0.8 mm | |
| Cutting capacity (medium-hard) | 0.6 mm | |
| Material | ball bearing steel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
