3-961-15 | Bernstein

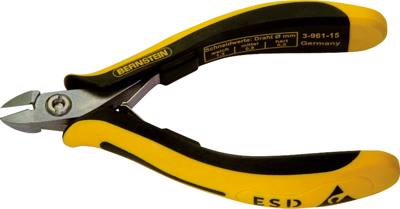

ESD side cutter, 120 mm, 75 g, cut capacity (1.3/0.8/0.5 mm/–), 3-961-15

Order No.: 05L4600
EAN: 4099891354534
MPN:
3-961-15
Series: EUROLINE
3-961-15 Bernstein Side Cutters, Tip Cutters
Image may differ
Unit Price (€ / pc.)
59.976 € *
Available: 0 pcs.
Available in 5 Days: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
59.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
59.976 €

Electronic technician's special ESD pliers, type Bernstein TECHNIC line.

Made of ball bearing steel (chrome steel), precision joint with screw system (precise alignment of the cutting edges without play), reflection-free surface, double leaf spring and ergonomic finger protection sleeves; Cutting edge hardness: 63 to 65 HRC.

Diagonal cutter with slim rounded head.

Head width: 10 mm. Length: 120 mm. Weight: 75 g.

Technical attributes (type, version, cutting values (soft/medium-hard/hard wire)): 3-961-15, with facet, 1.3/0.8/0.5 mm

Technical specifications
Weight 75 g
Cutting capacity (medium-hard) 0.8 mm
ESD protection Yes
Cutting edge with facet
Cutting capacity (soft) 1.3 mm
Cutting capicity (hard) 0.5 mm
Length 120 mm
Version side cutter
Material ball bearing steel
1000V Insulated No
Logistics
Country of origin CH
Customs tariff number 82032000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
