3-675-15 | Bernstein
ESD oblique cutter, 115 mm, 65 g, cut capacity (1.2/1/0.4 mm/–), 3-675-15
Unit Price (€ / pc.)
62.0823 € *
Standard delivery time from the manufacturer is: 2 Weeks

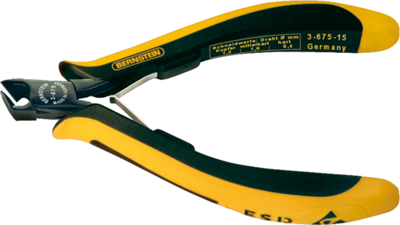

Oblique cutter, type Bernstein Euroline-Conductive 3-675-15.
Without facet, cutting plane 29° angular, made of special steel. 2 colored, conductive hand protection sleeves. With box joint and double leaf spring.
Finish: fine polished and high-gloss burnished.
Length: 115 mm.
Cutting values: medium-hard wire/hard wire/piano wire - 1.2/1.0/0.4 mm.
Weight: 65 g.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| Cutting capacity (medium-hard) | 1 mm | |
| Weight | 65 g | |
| Material | special steel | |
| Cutting capicity (hard) | 0.4 mm | |
| ESD protection | Yes | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 1.2 mm | |
| Version | oblique end cutter | |
| Length | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
