3-668-15 | Bernstein
ESD side cutter, 135 mm, 110 g, cut capacity (2/1.5/0.7 mm/–), 3-668-15
Unit Price (€ / pc.)
59.2620 € *
Available in 5 Days: 32 pcs. - if ordered today
Total Price:
59.26 € *
Price list
Quantity
Price per unit*
1 pcs.
59.2620 €
5 pcs.
53.3001 €
*incl. VAT plus shipping costs
Subject to prior sale

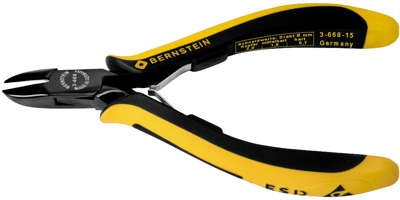

ESD diagonal cutter, type Bernstein EUROline 3-668-15.
With rounded cutter head and facet (semi-flush). With box joint and double leaf spring. Ergonomic dual-colored conductive hand protection sleeves, slip-proof.
Finish: fine polished and high-gloss burnished.
Length: 135 mm.
Head length: 14 mm.
Cutting values soft / hard / piano wire: 2.0mm / 1.5mm / 0.7mm.
Weight: 110 g.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| Cutting capacity (soft) | 2 mm | |
| Length | 135 mm | |
| ESD protection | Yes | |
| Material | special steel | |
| Weight | 110 g | |
| Cutting capicity (hard) | 0.7 mm | |
| Cutting capacity (medium-hard) | 1.5 mm | |
| Version | side cutter | |
| Cutting edge | with facet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
