9-341 | Bernstein

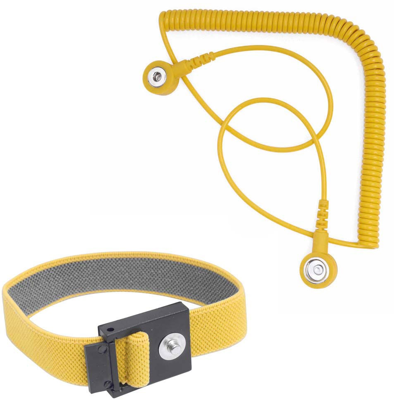

Grounding wrist strap kit, with spiral cable 2.4 m, push button Ø 10 mm, plastic, yellow, 9-341
Order No.: 05L0242
EAN: 4250838527798
MPN:
9-341
Unit Price (€ / pc.)
11.3645 € *
Available: 6 pcs.
Available in 5 Days: 2 pcs. - if ordered today
ESD contact bracelet, 9-341, Bernstein
Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated synthetic fibers (close skin contact necessary) and a spiral cable which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC. To ensure adequate insulation, the bracelet may only be stored in a dry place.
Features
- EPA suitable for working in electrostatically protected areas (ESD workplace / ESD protection zone)
- Meets the safety requirements for wrist grounding
Technical specifications
| Material | plastic | |
| Colour | yellow | |
| Product type | grounding wrist strap kit | |
| Version | with spiral cable 2.4 m | |
| Push button diameter | 10 mm | |
| Usage | electrical safety |
Download
Logistics
| Customs tariff number | 63079098 |
| Country of origin | TW |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
