33E10 | BACO

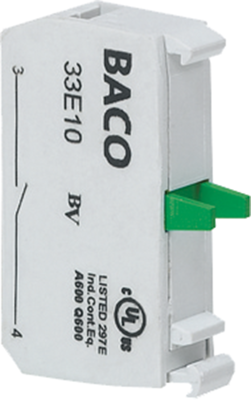

NO contact element, 33E10
Active
Product by BACO at Bürklin Elektronik
Control and signal gear, 22 and 30 mm, type BACO.
The contact elements, actuating elements, and accessories can be combined to suit your requirements; Certification: UL. Operating temperatures: –25 to +70 °C.
Contact elements with screw terminals, type 33E.
Rated insulation voltage: 690 VAC. Rated surge voltage strength: 6.0 kV. Continuous thermal current AC15/DC13: 10/2.5 A. Minimum operating current: Vin 24 VDC, Iin 5.0 mA. Terminating cross-section with/without wire end ferrule: 0.5 to 2 x 1.5/2.5 mm². Width: 9.9 mm.
Type: 33E10, NO
| Connection | screw connection | |
| Version | Contact block | |
| can be illuminated | No | |
| Isolation voltage | 690 V | |
| Contact function | groping | |
| Contact material | silver | |
| Rated voltage | 600 V | |
| Rated current | 10 A | |
| Latching switching function | 1 Form A (NO) |
| Country of origin | PL |
| Customs tariff number | 85389099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
