NC54DX80 | BACO

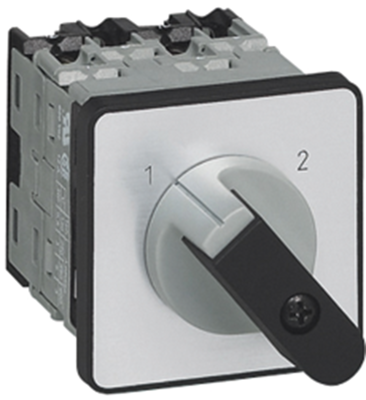

Cam switch, rotary actuator, 4 pole, 16 A, (L x W x H) 81 x 40 x 42 mm, front mounting, NC54DX80
Order No.: 26G348
EAN: 4099889296617
MPN:
NC54DX80
227553
Unit Price (€ / pc.)
43.4231 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cam switches, series PR 12, type Baco NB../NC../ND.
22 mm bushing mount from the front. Breaking capacity; AC 21/AC 15: 16/6.0 A,. Operating temperatures: –20 to +70 °C. Certifications: CSA, UL, IEC/EN 60947.
CO switches without 0 position, type NC.
Technical attributes (type, number of poles, dimension P): NC54DX80, 4-pole, L 81 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | front mounting | |
| Degree of protection (IP) | IP65 | |
| Product type | cam switch | |
| Height | 42 mm | |
| Actuator | rotary actuator | |
| Pin number | 4 pole | |
| Length | 81 mm | |
| Width | 40 mm | |
| Permanent current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
