NC01GX80 | BACO

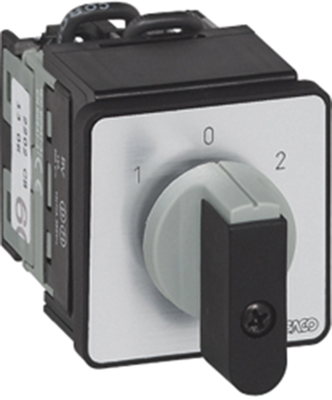

Cam switch, Rotary actuator, 1 pole, 16 A, (L x W x H) 51 x 40 x 42 mm, Front mounting, NC01GX80
Active
Product by BACO at Bürklin Elektronik
Cam switches, series PR 12, type Baco NB../NC../ND.
22 mm bushing mount from the front. Breaking capacity; AC 21/AC 15: 16/6.0 A,. Operating temperatures: –20 to +70 °C. Certifications: CSA, UL, IEC/EN 60947.
CO switches with 0 position, type NC.
Technical attributes (type, number of poles, dimension P): NC01GX80, single-pole, P 51 mm
| Actuator | Rotary actuator | |
| Width | 40 mm | |
| Permanent current | 16 A | |
| Height | 42 mm | |
| Length | 51 mm | |
| Assembly | Front mounting | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP65 |
| Country of origin | FR |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
