172101 | BACO

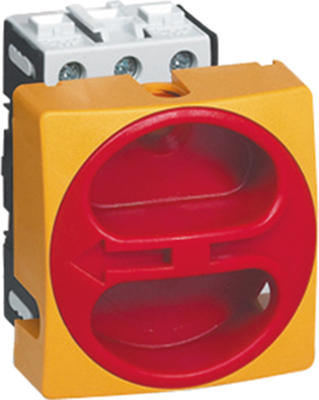

Load-break switch, rotary actuator, 3 pole, 32 A, 690 V, (L x W x H) 100 x 150 x 96 mm, front mounting, 172101
Order No.: 12G7602
EAN: 4099889296365
MPN:
172101
Unit Price (€ / pc.)
35.6286 € *
Available: 5 pcs.
Total Price:
35.63 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6286 €
3 pcs.
33.4866 €
5 pcs.
32.2014 €
7 pcs.
30.7853 €
10 pcs.
29.5001 €
*incl. VAT plus shipping costs
Subject to prior sale
Load disconnect switches, type BACO 172.
For front-panel mounting, lockable, 3-pole, double isolation per phase; Rated insulation voltage: 690 V. Degree of protection: IP 40. Operating temperatures: –30 to +70 °C. Standards: IEC 60697-3, EN 60947-3. Certifications: UL, cUL. Front panel: 66 x 66 mm.
Technical attributes (type, rated continuous current, breaking capacity (AC 23 A) 3 x 230 V/3 x 400 V, mounting depth): 172101, 32 A, 5.5/11 kW, 50 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 690 V | |
| Length | 100 mm | |
| Height | 96 mm | |
| Assembly | front mounting | |
| Width | 150 mm | |
| Permanent current | 32 A | |
| Degree of protection (IP) | IP40 | |
| Actuator | rotary actuator | |
| Product type | load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
