172001 | BACO

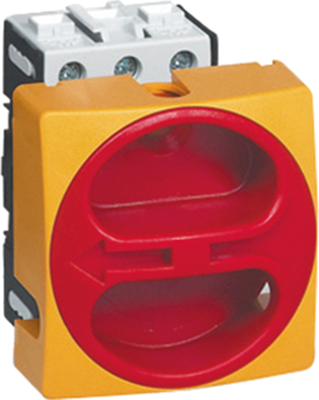

Load-break switch, rotary actuator, 3 pole, 25 A, 690 V, (L x W x H) 100 x 150 x 96 mm, front mounting, 172001
Order No.: 12G7600
EAN: 4099889296358
MPN:
172001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
35.7952 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
35.80 € *
Price list
Quantity
Price per unit*
1 pcs.
35.7952 €
5 pcs.
32.8797 €
10 pcs.
30.9400 €
25 pcs.
29.0122 €
*incl. VAT plus shipping costs
Subject to prior sale
Load disconnect switches, type BACO 172.
For front-panel mounting, lockable, 3-pole, double isolation per phase; Rated insulation voltage: 690 V. Degree of protection: IP 40. Operating temperatures: –30 to +70 °C. Standards: IEC 60697-3, EN 60947-3. Certifications: UL, cUL. Front panel: 66 x 66 mm.
Technical attributes (type, rated continuous current, breaking capacity (AC 23 A) 3 x 230 V/3 x 400 V, mounting depth): 172001, 25 A, 5.5/7.5 kW, 50 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | load-break switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | front mounting | |
| Width | 150 mm | |
| Height | 96 mm | |
| Permanent current | 25 A | |
| Isolation voltage | 690 V | |
| Degree of protection (IP) | IP40 | |
| Length | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
