L21UD03 | BACO

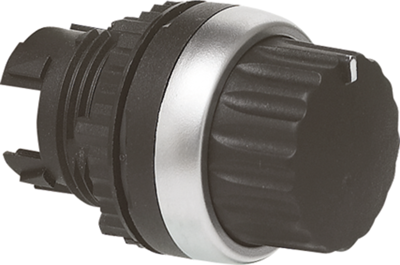

Rotary switch, unlit, groping, waistband round, black, 45°, mounting Ø 22 mm, L21UD03
Unit Price (€ / pc.)
11.7096 € *
Standard delivery time from the manufacturer is: 2 Weeks
Selector switch with rotary knob, for control and signal gear, 22 and 30 mm, series BACO
Type: L21UD03
Version: momentary action
Switching angle: 45°
Switching function: on - off - on
Operating temperatures: - 25 bis +70 °C
Degree of protection: IP 66
Certification: UL
With mounting nut, chromed front bezel and black rotary knob, for combination with adapter and contact elements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Type of mounting | threaded ring | |
| Installation height | 23 mm | |
| Protection class | IP66 | |
| Contact function | groping | |
| Actuator colour | black | |
| Product type | rotary switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 45° |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
