7-1393806-8 | AXICOM
Relay, 4 Form C (NO/NC), 20 V (DC), 550 Ω, 2 A, 150 V (DC), 125 V (AC), monostable, 7-1393806-8
As a private customer, you can buy this item as soon as we have it back in stock.

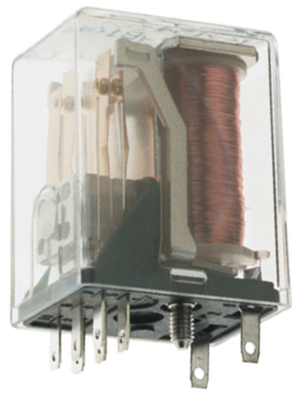

Cradle relay, type TE Connectivity/AXICOM N.

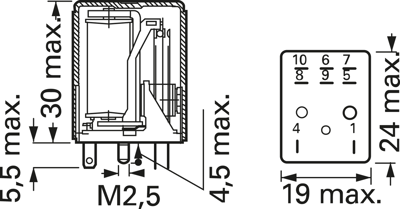

Size: 1, for DC voltage, non-polarized, monostable, with single contacts, pluggable and fixed installation, dust-proof (IP 30). Contact material: silver, gold-plated. Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 50 K/W. Response/release time: typically 7.5/3.0 ms. Socket descriptions below the Cradle relay.
With 2 x CO contacts.
Test voltage contact/coil: 1000 VRMS, contact/contact 500 VRMS. Switching voltage: max. 150 VDC/125 VAC. Switching current: max. 2.0 A. Breaking capacity: voltage-dependent 35 to 70 W/50 VA. Switching rate: max. 50 switching cycles/s.
Technical attributes (type, rated coil voltage, voltage range (min./max.), coil resistance (±15%)): 7-1393806-8, 20 VDC, 8.9/32 VDC, 550 ohm
| Filter | Property | Value |
|---|---|---|
| Contact type | 4 Form C (NO/NC) | |
| switching current | 2 A | |
| Coil voltage (DC) | 20 V | |
| Coil resistance | 550 Ω | |
| Switching Voltage (DC) | 150 V | |
| Switching Voltage (AC) | 125 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Contact material | Ni |
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
