Auris

Q- 16,000000M-HC49US-F-30-30-D-32 | Auris

Quarz, 16 MHz, 32 pF, ±30 ppm

default S
default L
Order No.:  78D154
Manufacturer:  Auris
Manufacturer SKU Q- 16,000000M-HC49US-F-30-30-D-32
Manufacturer series:  HC49US
EAN: 4099879149312
about the green icons

Active

Total price
( 0.3927 € * / pcs.)
0.39 €
Available: 460 pcs.
Quantity
Price per unit*
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
*incl. VAT plus shipping costs
Show 44 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Auris at Bürklin Elektronik

Miniature quartz crystals, type Auris HC49US.

Frequency tolerance: ±30 ppm at +25 °C. Temperature tolerance: 30 ppm. Operating temperatures: –20 to +70 °C. Parallel capacitance: max. 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.


Type: 16.000000 MHz, 32 pF
Technical specifications

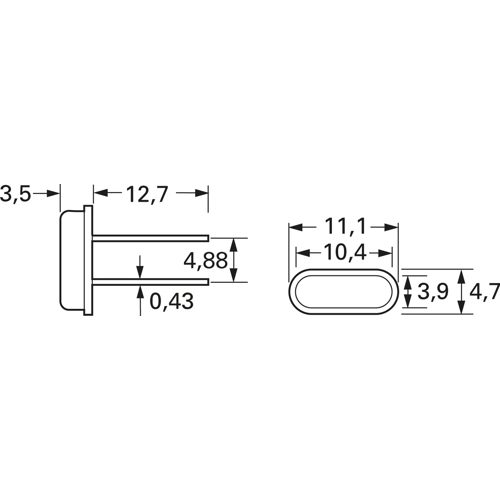

Width 4.7 mm
ESR (Equivalent Series Resistance) 35 Ω
Frequency 16 MHz
Frequency stability +/-30
Height 3.5 mm
Length 11.1 mm
Load Capacity 0.000032 µF
max. operating temperature 70 °C
min. operating temperature -20 °C
Assembly THT
Tolerance ±30 ppm
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85416000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Unit
Length
Unit
Tolerance
Load Capacity
Unit
Height
Unit
Assembly
Frequency
min. operating temperature
Frequency stability
max. operating temperature
1 item in 44 variations
Item description
Price list
Total
Width
Length
Tolerance
Load Capacity
Height
Assembly
Frequency
min. operating temperature
Frequency stability
max. operating temperature
Quarz, 16 MHz, 32 pF, ±30 ppm
Quarz, 16 MHz, 32 pF, ±30 ppm
Order No.:
 78D154
Manufacturer:
 Auris
Manufacturer SKU
 Q- 16,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 460 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
16 MHz
-20 °C
+/-30
70 °C
Quarz, 4 MHz, 20 pF, ±30 ppm
Quarz, 4 MHz, 20 pF, ±30 ppm
Order No.:
 78D134
Manufacturer:
 Auris
Manufacturer SKU
 Q- 4,000000M-HC49US-F-30-30-D-20
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 1,048 pcs.
Next delivery: 1,000 pcs. on 2023-04-28
4.7 mm
11.1 mm
±30 ppm
0.00002 µF
3.5 mm
THT
4 MHz
-20 °C
+/-30
70 °C
Quarz, 8 MHz, 32 pF, ±30 ppm
Quarz, 8 MHz, 32 pF, ±30 ppm
Order No.:
 78D146
Manufacturer:
 Auris
Manufacturer SKU
 Q- 8,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 2,146 pcs.
Next delivery: 600 pcs. on 2023-04-13
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
8 MHz
-20 °C
+/-30
70 °C
Quarz, 3,6864 MHz, 32 pF, ±30 ppm
Quarz, 3,6864 MHz, 32 pF, ±30 ppm
Order No.:
 78D132
Manufacturer:
 Auris
Manufacturer SKU
 Q- 3,686400M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 264 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
3.6864 MHz
-20 °C
+/-30
70 °C
Quarz, 12 MHz, 32 pF, ±30 ppm
Quarz, 12 MHz, 32 pF, ±30 ppm
Order No.:
 78D150
Manufacturer:
 Auris
Manufacturer SKU
 Q- 12,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 854 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
12 MHz
-20 °C
+/-30
70 °C
Quarz, 14,7456 MHz, 32 pF, ±30 ppm
Quarz, 14,7456 MHz, 32 pF, ±30 ppm
Order No.:
 78D1522
Manufacturer:
 Auris
Manufacturer SKU
 Q- 14,745600M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Currently not in stock, we will order for you
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
14.7456 MHz
-20 °C
+/-30
70 °C
Quarz, 4,9152 MHz, 32 pF ±30 ppm
Quarz, 4,9152 MHz, 32 pF ±30 ppm
Order No.:
 78D138
Manufacturer:
 Auris
Manufacturer SKU
 Q- 4,915200M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 918 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
4.9152 MHz
-20 °C
+/-30
70 °C
Quarz, 11,0592 MHz, 32 pF, ±30 ppm
Quarz, 11,0592 MHz, 32 pF, ±30 ppm
Order No.:
 78D1484
Manufacturer:
 Auris
Manufacturer SKU
 Q- 11,059200M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 217 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
11.0592 MHz
-20 °C
+/-30
70 °C
Quarz, 20 MHz, 32 pF, ±30 ppm
Quarz, 20 MHz, 32 pF, ±30 ppm
Order No.:
 78D1566
Manufacturer:
 Auris
Manufacturer SKU
 Q- 20,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 737 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
20 MHz
-20 °C
+/-30
70 °C
Quarz, 17,734475 MHz, 32 pF, ±30 ppm
Quarz, 17,734475 MHz, 32 pF, ±30 ppm
Order No.:
 78D1560
Manufacturer:
 Auris
Manufacturer SKU
 Q- 17,734475M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 112 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
17.734475 MHz
-20 °C
+/-30
70 °C
Quarz, 7,3728 MHz, 32 pF, ±30 ppm
Quarz, 7,3728 MHz, 32 pF, ±30 ppm
Order No.:
 78D1442
Manufacturer:
 Auris
Manufacturer SKU
 Q- 7,372800M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 5,536 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
7.3728 MHz
-20 °C
+/-30
70 °C
Quarz, 6 MHz, 32 pF, ±30 ppm
Quarz, 6 MHz, 32 pF, ±30 ppm
Order No.:
 78D140
Manufacturer:
 Auris
Manufacturer SKU
 Q- 6,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 555 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
6 MHz
-20 °C
+/-30
70 °C
Quarz, 24 MHz, 32 pF, ±30 ppm
Quarz, 24 MHz, 32 pF, ±30 ppm
Order No.:
 78D162
Manufacturer:
 Auris
Manufacturer SKU
 Q- 24,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 798 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
24 MHz
-20 °C
+/-30
70 °C
Quarz, 5,12 MHz, 32 pF, ±30 ppm
Quarz, 5,12 MHz, 32 pF, ±30 ppm
Order No.:
 78D1386
Manufacturer:
 Auris
Manufacturer SKU
 Q- 5,120000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 859 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
5.12 MHz
-20 °C
+/-30
70 °C
Quarz, 9,8304 MHz, 32 pF, ±30 ppm
Quarz, 9,8304 MHz, 32 pF, ±30 ppm
Order No.:
 78D1464
Manufacturer:
 Auris
Manufacturer SKU
 Q- 9,830400M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 255 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
9.8304 MHz
-20 °C
+/-30
70 °C
Quarz, 18 MHz, 32 pF, ±30 ppm
Quarz, 18 MHz, 32 pF, ±30 ppm
Order No.:
 78D1562
Manufacturer:
 Auris
Manufacturer SKU
 Q- 18,000000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2202 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 65 pcs.
Next delivery: 1,000 pcs. on 2023-04-14
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
18 MHz
-20 °C
+/-30
70 °C
Quarz, 22,1184 MHz, 16 pF, ±30 ppm
Quarz, 22,1184 MHz, 16 pF, ±30 ppm
Order No.:
 78D160
Manufacturer:
 Auris
Manufacturer SKU
 Q- 22,118400M-HC49US-F-30-30-D-16
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 328 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000016 µF
3.5 mm
THT
22.1184 MHz
-20 °C
+/-30
70 °C
Quarz, 12,288 MHz, 32 pF, ±30 ppm
Quarz, 12,288 MHz, 32 pF, ±30 ppm
Order No.:
 78D151
Manufacturer:
 Auris
Manufacturer SKU
 Q- 12,288000M-HC49US-F-30-30-D-32
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 714 pcs.
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
12.288 MHz
-20 °C
+/-30
70 °C
Quarz, 10 MHz, 32 pF, ±30 ppm
Quarz, 10 MHz, 32 pF, ±30 ppm
Order No.:
 78D1466
Manufacturer:
 Auris
Manufacturer SKU
 Q- 10,000000M-HC49US-F-30-30-D-32
1 pcs.
0.4046 €
100 pcs.
0.2725 €
500 pcs.
0.2309 €
1000 pcs.
0.2035 €
3000 pcs.
0.1904 €
0.40 € *
Available: 167 pcs.
Next delivery: 1,000 pcs. on 2023-05-05
4.7 mm
11.1 mm
±30 ppm
0.000032 µF
3.5 mm
THT
10 MHz
-20 °C
+/-30
70 °C
Quarz, 5 MHz, 20 pF, ±30 ppm
Quarz, 5 MHz, 20 pF, ±30 ppm
Order No.:
 78D1382
Manufacturer:
 Auris
Manufacturer SKU
 Q- 5,000000M-HC49US-F-30-30-D-20
1 pcs.
0.3927 €
100 pcs.
0.2749 €
500 pcs.
0.2332 €
1000 pcs.
0.2059 €
3000 pcs.
0.1928 €
0.39 € *
Available: 981 pcs.
4.7 mm
11.1 mm
±30 ppm
0.00002 µF
3.5 mm
THT
5 MHz
-20 °C
+/-30
70 °C
