A-USBPA-N | Assmann WSW
Plug, Soldered connection, Gold, Gold
Active
Product by Assmann WSW at Bürklin Elektronik
USB connectors, type A-USBP-.
Current rating: 1.0 A. Operating voltage: 30 V. Test voltage: 750 V. Contact resistance: max. 30 mohm. Insulation resistance: min. 1000 mohm. Insulator contact material: PBT to UL 94 V-0. Contacts: brass. Contact finish: Ni, Au/Sn. Operating temperatures: –20 to +85 °C.

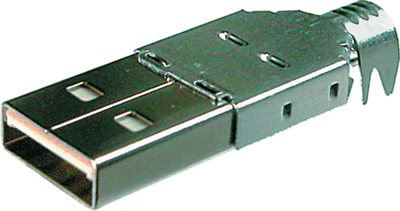

Type: A-USBP-A-N, USB-A male connector
| Version | A-Plug | |
| Contact connection | solder connection | |
| Assembly | front panel mounting | |
| Pin number | 4 pole | |
| USB Standard | USB 2.0 |
| Country of origin | TW |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
