A-57/50 F | Assmann WSW

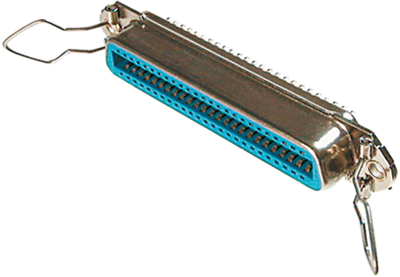

Centronics socket, 50 pole, solder cup, A-57/50 F
Order No.: 56F7256
EAN: 4099889815030
MPN:
A-57/50 F
Unit Price (€ / pc.)
12.9234 € *
Available: 38 pcs.
Total Price:
12.92 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9234 €
10 pcs.
11.6501 €
50 pcs.
10.2340 €
100 pcs.
8.6989 €
*incl. VAT plus shipping costs
Subject to prior sale
Centronics plug, A-57/50 F, Assmann WSW
For wire clip locking; Contact load capacity: 5.0 A. Rated voltage: 500 Volt. Ambient temperature: –55 to +125 °C. Contacts: bronze, gold-plated. Housing: galvanized or nickel-plated steel sheet, chromalized. Plastic inserts: polyester GV. Inflammability: to UL 94 V-0. Version: ready-made with contact inserts.
Standard female panel connectors, type A 57.. F.
With solder terminals and wire clips; Contact insert: female.

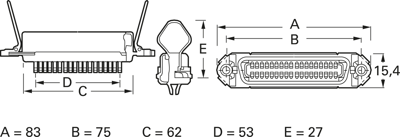

Technical attributes (number of poles, dimensions): 50–pole, A 83, B 75, C 62, D 53, E 27 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | through-hole mounting | |
| Contact connection | solder cup | |
| Pin number | 50 pole | |
| Version | centronics socket | |
| Type of locking | spring |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
