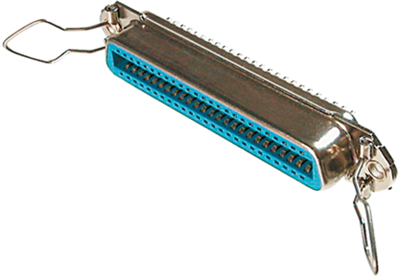

A-57/14 F | Assmann WSW

Female connector, Soldered connection, Spring clip, 14

Order No.: 56F7250
EAN: 4099889815009
MPN:
A-57/14 F
Assmann WSW
default L
front L
Image may differ
Unit Price (€ / pc.)
5.7596 € *
Available: 33 pcs.
Leadtime: 15 Weeks **
Total Price:
5.76 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7596 €
10 pcs.
5.0575 €
50 pcs.
4.4625 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connectors series IEEE 488 or Centronics, type Assmann WSW A 57.

For wire clip locking; Contact load capacity: 5.0 A. Rated voltage: 500 Volt. Ambient temperature: –55 to +125 °C. Contacts: bronze, gold-plated. Housing: galvanized or nickel-plated steel sheet, chromalized. Plastic inserts: polyester GV. Inflammability: to UL 94 V-0. Version: ready-made with contact inserts.

Standard female panel connectors, type A 57.. F.

With solder terminals and wire clips; Contact insert: female.

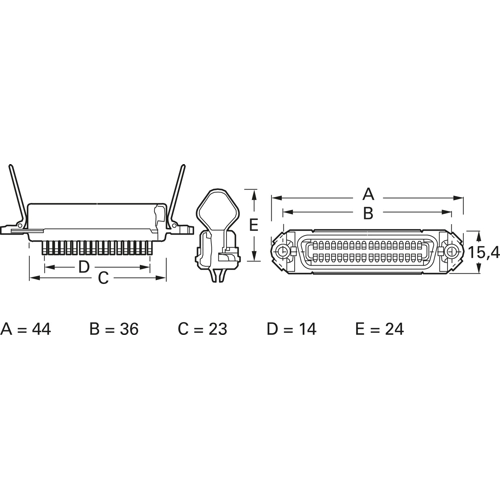

Technical attributes (number of poles, dimensions): 14–pole, A 44, B 36, C 23, D 14, E 24 mm

Technical specifications
Version socket
Contact connection solder cup
Assembly Through-hole mounting
Pin number 14 pole
Type of locking Spring
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Pin number
Version
Type of locking
Assembly
Contact connection
1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Pin number
Version
Type of locking
Assembly
Contact connection
Female connector, Soldered connection, Spring clip, 14
Order No.:
 56F7250
Manufacturer:
 Assmann WSW
Manufacturer SKU:
 A-57/14 F
Available: 33 pcs. Leadtime: 15 Weeks **
Total Price: 5.76 € *
1 pcs.
5.7596 €
10 pcs.
5.0575 €
50 pcs.
4.4625 €
14 pole
socket
Spring
Through-hole mounting
solder cup
Female connector, Soldered connection, Spring clip, 24
Order No.:
 56F7252
Manufacturer:
 Assmann WSW
Manufacturer SKU:
 A-57/24 F
Available: 73 pcs. Leadtime: 15 Weeks **
Total Price: 12.59 € *
1 pcs.
12.5902 €
10 pcs.
11.3288 €
50 pcs.
10.1864 €
24 pole
socket
Spring
Through-hole mounting
solder cup
Female connector, Soldered connection, Spring clip, 50
Order No.:
 56F7256
Manufacturer:
 Assmann WSW
Manufacturer SKU:
 A-57/50 F
Available: 82 pcs. Leadtime: 15 Weeks **
Total Price: 12.92 € *
1 pcs.
12.9234 €
10 pcs.
11.6501 €
50 pcs.
10.2340 €
100 pcs.
8.6989 €
50 pole
socket
Spring
Through-hole mounting
solder cup
Female connector, Soldered connection, Spring clip, 36
Order No.:
 56F7254
Manufacturer:
 Assmann WSW
Manufacturer SKU:
 A-57/36 F
Available: 0 pcs. Leadtime: 15 Weeks **
Total Price: 8.21 € *
40 pcs.
8.2110 €
400 pcs.
7.2233 €
800 pcs.
6.9734 €
36 pole
socket
Spring
Through-hole mounting
solder cup
