TL36WW05000 | APEM

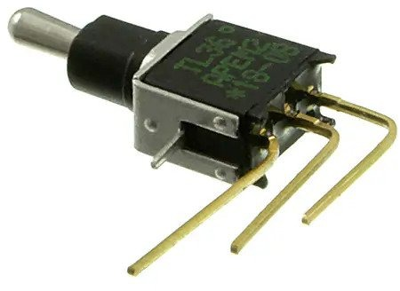

Toggle switch, metal, 1 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, TL36WW05000
Unit Price (€ / pc.)
8.3538 € *
Available: 129 pcs.
Total Price:
8.35 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3538 €
10 pcs.
7.3542 €
50 pcs.
6.8544 €
100 pcs.
6.5450 €
200 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale
Toggle switches, wash-proof, type APEM TL.
Subminiature version for PCB mounting, fully sealed, wash-proof, wave soldering resistant, no ultrasonic soldering; Grid: 2.54 mm. Housing: PBT. Lever: brass, nickel-plated, 5.3 mm length. Contacts and terminals: gold-plated brass. Sealing of the terminals: epoxy. Breaking capacity: max. 0.4 VA/20 V AC/DC. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Mohm on 500 VAC. Dielectric strength between contacts/terminals and ground: 500 VRMS / 1000 VRMS. Operating temperatures: –30 to +85 °C.
With staggered angled solder pins.
Technical attributes (type, number of poles, switching action OFF, ON, momentary on, momentary (M)): TL36WW05000, single-pole, ON-ON
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | On-On | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Latching switching function | latching | |
| Pin number | 1 pole | |
| contact surface | gold-plated | |
| Connection | PCB connection | |
| Type of mounting | central Mounting | |
| Design | horizontal | |
| Actuator colour | metal | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
