21138NA | APEM
Toggle switch, 1 pole, groping/latching, On-Off-(On), 2 A/250 VAC, 4 A/125 VAC, 4 A/30 VDC, silver-plated

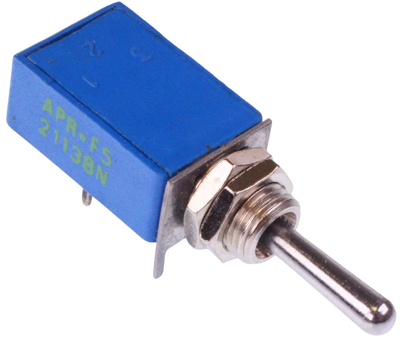

Images may differ
Unit Price (€ / pc.)
10.3649 € *
Available: 0 pcs.
Next delivery: 97 pcs. on 2024-02-08
Leadtime: 16 Weeks **
Add to Cart
Total Price:
10.36 € *
Quantity
Price per unit*
1 pcs.
10.3649 €
10 pcs.
9.1154 €
50 pcs.
8.4966 €
150 pcs.
8.1277 €
500 pcs.
7.7112 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Toggle switches, type APEM 21000N.
Low profile design, with 6.35 mm (1/4") threaded bushing; Breaking capacity: 2.0 A/250 VAC, 4.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Mohm on 500 VDC. Connections: straight solder pins. Contact material: silver. Lever: brass, chrome-plated. Socket: brass, nickel-plated. Housing: PBT. Operating temperatures: –40 to +85 °C.
Technical attributes (type, number of poles, switching actions OFF, ON, momentary on, momentary on (M)): 21138NA, single-pole, ON-ON
Technical specifications
| Connection | PCB connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping/latching | |
| Breaking capacity | 2 A/250 VAC, 4 A/125 VAC, 4 A/30 VDC | |
| Shift position | On-Off-(On) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 3 variations
*incl. VAT plus shipping costs
Order No.:
08G186
Manufacturer:
APEM
Manufacturer SKU:
21146NA
Total Price: 12.51 € *
1 pcs.
12.5069 €
10 pcs.
11.0075 €
50 pcs.
10.2578 €
150 pcs.
9.8056 €
500 pcs.
9.3058 €
Available: 107 pcs.
Next delivery: 90 pcs. on 2023-12-07
Leadtime: 16 Weeks **
2 A/250 VAC, 4 A/125 VAC, 4 A/30 VDC
latching
2 pole
On-On
vertical
metal
central Mounting
silver-plated
PCB connection
No
Order No.:
08G180
Manufacturer:
APEM
Manufacturer SKU:
21136NA
Total Price: 8.63 € *
1 pcs.
8.6275 €
10 pcs.
7.5922 €
50 pcs.
7.0805 €
150 pcs.
6.7592 €
500 pcs.
6.4141 €
Available: 82 pcs.
Leadtime: 16 Weeks **
4 A/125 VAC, 30 VDC
latching
1 pole
On-On
vertical
metal
central Mounting
silver-plated
PCB connection
No
Order No.:
08G182
Manufacturer:
APEM
Manufacturer SKU:
21138NA
1 pcs.
10.3649 €
10 pcs.
9.1154 €
50 pcs.
8.4966 €
150 pcs.
8.1277 €
500 pcs.
7.7112 €
Available: 0 pcs.
Next delivery: 97 pcs. on 2024-02-08
Leadtime: 16 Weeks **
2 A/250 VAC, 4 A/125 VAC, 4 A/30 VDC
groping/latching
1 pole
On-Off-(On)
vertical
metal
central Mounting
silver-plated
PCB connection
No
