Q22P1CXXR24E | APEM
LED signal light, 24 V (DC), red, 80 mcd, Mounting Ø 22 mm, pitch 1.25 mm, LED number: 1
Unit Price (€ / pc.)
12.0547 € *
Available: 0 pcs.
Leadtime: On Request **

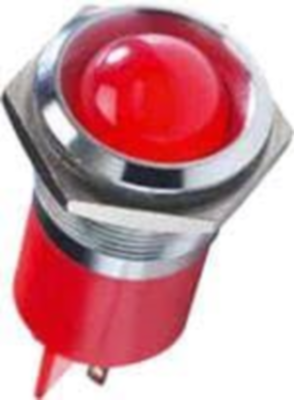

LED-Signal lamp, Q22P1CXXR24E, APEM
LED indicators with the installation diameter of 22 mm. Integrated Ø 18 mm LED, 5VDC to 220 VAC, with metal or plastic socket and options for flashing, permanent or RGB illumination.
Features
- Various connection options (solder lugs, plug connections, solder pins and cable outlets)
- Frame shapes (protruding, recessed or flat)
- Surfaces (chrome, chrome matt, chrome black and gold)
- Also available in Super-Bright
Technical specifications
| Connection | solder connection/2.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 18 mm | |
| Installation diameter | 22 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.08 cd | |
| Assembly | PCB mounting | |
| Rated voltage (DC) | 24 V | |
| Rated current | 40 mA | |
| Grid | 1.25 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
