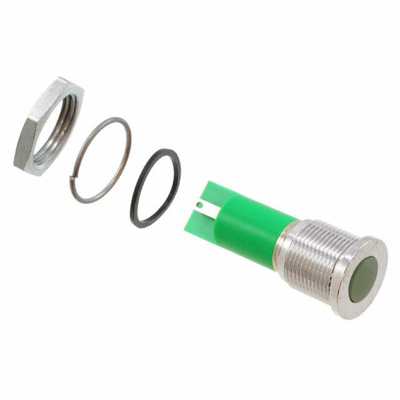

Q16F1CXXG24E | APEM
Signal light, 24 V (DC), green, 5 mcd, Mounting Ø 16 mm, pitch 1.25 mm, LED number: 1, Q16F1CXXG24E
LED-Signal lamp, Q16F1CXXG24E, APEM
The Q16F1CXXG24E LED Indicator is a versatile and reliable device designed to provide clear and visible indication in various applications. With a mounting hole of 16mm, it can be easily installed in control panels or machinery. The flush bezel style adds a sleek and modern touch to any design. Equipped with solder lug fastons 28 x 08 terminals, it ensures secure and stable connections. The bright chrome bezel finish not only enhances its aesthetics but also provides added durability. With fixed light illumination, the Q16F1CXXG24E delivers a consistent and steady light output. The green LED color further enhances visibility and clarity. Operating at a voltage of 24VDC, it offers efficient and reliable performance. With an IP67 sealing rating, it is resistant to dust and water, making it suitable for both indoor and outdoor use.
| Filter | Property | Value |
|---|---|---|
| Rated current | 20 mA | |
| Assembly | PCB mounting | |
| Number of LEDs | 1 | |
| Farbe der Beleuchtung | green | |
| Installation diameter | 16 mm | |
| Grid | 1.25 mm | |
| Luminous intensity | 0.005 cd | |
| Connection | solder connection/2.8 mm | |
| Diode Diameter | 10 mm | |
| Rated voltage (DC) | 24 V |
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | GB |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
