Q16F1CXXB24E | APEM
Signal light, 24 V (DC), blue, 100 mcd, Mounting Ø 16 mm, pitch 1.25 mm, LED number: 1, Q16F1CXXB24E
Unit Price (€ / pc.)
8.7108 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
871.08 € *
Price list
Quantity
Price per unit*
100 pcs.
8.7108 €
500 pcs.
8.1396 €
*incl. VAT plus shipping costs
**Subject to prior sale

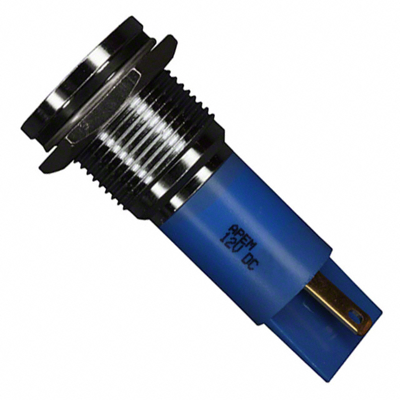

LED-Signal lamp, Q16F1CXXB24E, APEM
The Q16F1CXXB24E LED Indicator is a versatile and reliable solution for various applications. With a 16 mm mounting hole, it is easy to install and fits seamlessly into any panel or device. The flush bezel style adds a sleek and modern touch to the design. Equipped with solder lug fastons 28 x 08 terminals, it ensures a secure and stable connection. The bright chrome bezel finish enhances the overall aesthetics. Emitting a fixed blue light, it provides clear and visible indication. Operating at a voltage of 24 VDC, it is energy-efficient and cost-effective. With an IP67 sealing rating, it is protected against dust and water, making it suitable for both indoor and outdoor use.
Technical specifications
| Luminous intensity | 0.1 cd | |
| Rated voltage (DC) | 24 V | |
| Installation diameter | 16 mm | |
| Assembly | PCB mounting | |
| Diode Diameter | 10 mm | |
| Rated current | 20 mA | |
| Grid | 1.25 mm | |
| Number of LEDs | 1 | |
| Farbe der Beleuchtung | blue | |
| Connection | solder connection/2.8 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
