IXP3W12FRXN9 | APEM
Pushbutton, 1 pole, black, illuminated (red/green), 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP3W12FRXN9
Unit Price (€ / pc.)
30.7258 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

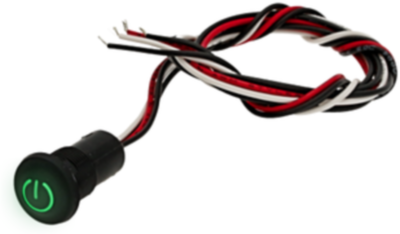

Pushbutton, IXP3W12FRXN9, APEM
Pushbutton NO , Illuminated Power Symbol ( Red / Green) , 24 AWG wires , Silver , Black actuator
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- NO or NC/NO
- High sealing level, no space between actuator and bushing (IP67/IP69K)
Technical specifications
| Connection | wire connection | |
| Design | round | |
| Printed | Yes | |
| illuminated | Yes | |
| Installation diameter | 11.9 mm | |
| Actuator colour | black | |
| Farbe der Beleuchtung | red/green | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 2 A/28 V | |
| Protection class | IP67/IP69K |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
