IPR3SAD2 | APEM
Vandal-proof pushbutton, 1 pole, black, unlit , 5 A/28 VDC, mounting Ø 13.6 mm, IP67, IPR3SAD2
Unit Price (€ / pc.)
12.7568 € *
Available: 796 pcs.
Total Price:
12.76 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7568 €
10 pcs.
11.2217 €
25 pcs.
10.4601 €
50 pcs.
9.9960 €
100 pcs.
9.4962 €
*incl. VAT plus shipping costs
Subject to prior sale

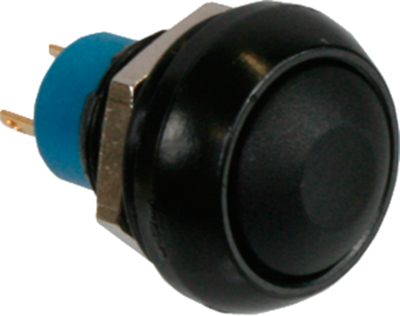

Panel switch, IPR3SAD2, APEM
The IPR3SAD2 panel switch, also known as a pushbutton switch, is a versatile and reliable control solution. With its round curved actuator design, it offers a comfortable and intuitive user experience. The electrical functions of this switch are normally open (NO), allowing for easy and efficient circuit control. The contacts of the IPR3SAD2 are made of silver goldplated standard materials, ensuring superior conductivity and durability. Whether you need to control lights, appliances, or other electrical devices, the IPR3SAD2 Panel Switch is the perfect choice.
Features
- Tactile feedback
- Wide variety of configurations
- Flat round actuator for optional marking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator colour | black | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Latching switching function | groping | |
| Connection | solder connection | |
| illuminated | No | |
| Breaking capacity | 5 A/28 VDC | |
| Design | round | |
| Wall thickness | 1.5-4 mm | |
| Printed | No | |
| Installation diameter | 13.6 mm | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
