IPC3SAD3 | APEM

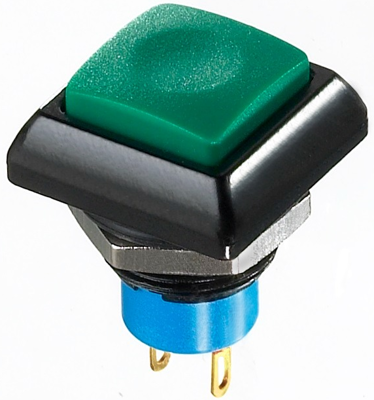

Pushbutton, 1 pole, green, unlit , 5 A/28 VDC, mounting Ø 13.6 mm, IP67, IPC3SAD3
Unit Price (€ / pc.)
12.7687 € *
Available: 103 pcs.
Leadtime: 8 Weeks **
Total Price:
12.77 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7687 €
10 pcs.
11.2336 €
50 pcs.
10.4720 €
150 pcs.
9.9960 €
500 pcs.
9.4962 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel switch, IPC3SAD3, APEM
The IPC3SAD3 is a high-quality and versatile device that offers a range of actuator types, reliable electrical functions, and durable contacts. It is the perfect choice for your control needs.
Features
- Tactile feedback
- Wide variety of configurations
- Flat round actuator for optional marking
Technical specifications
| Connection | solder connection | |
| Design | square | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 13.6 mm | |
| Actuator colour | green | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 5 A/28 VDC | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Wall thickness | 1.5-4 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
