IPR3SAD1 | APEM

Pushbutton, 1 pole, blue, unlit , 5 A/28 VDC, mounting Ø 13.6 mm, IP67, IPR3SAD1

Order No.: 12G1604
EAN: 4099889188394
MPN:
IPR3SAD1
Series: IP

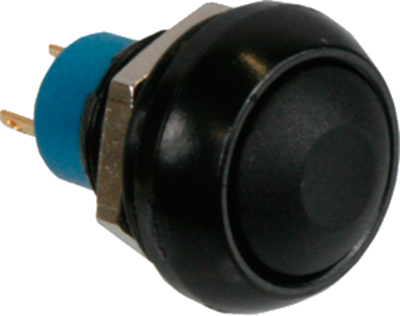

IPR3SAD1 APEM Pushbutton Switches Image 1

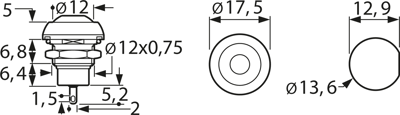

IPR3SAD1 APEM Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
13.0900 € *
Available: 10 pcs.
Total Price:
13.09 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0900 €
10 pcs.
11.5192 €
50 pcs.
10.7338 €
150 pcs.
10.2459 €
500 pcs.
9.7342 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular pushbuttons for harsh environments, degree of protection IP 67, type APEM IP.

Single-pole, NO contact, tactile feedback, sealed, M12 x 0.75 bushing mount; Breaking capacity: max. 500 mA/48 VAC, 200 mA/250 VAC, 200 mA/50 VDC. Contact resistance (initial): max. 100 mohm. Insulation resistance: min. 1.0 Gohm (at 500 VDC). Dielectric strength: 1500 VRMS. Degree of protection: IP 67. Protection against external mechanical stress (EN 50102): IK 06. Total travel: 1.5 mm. Actuating force: 2.0 to 5.0 N, for panel thickness from 1.5 to 4.0 mm. Connections: solder lugs. Case material: thermoplastic, UL 94 V-0. Actuator: polyamide. Contacts: silver, gold-plated. Operating temperatures: –40 to +125 °C.

Technical attributes (type, actuator color): IPR3SAD1, blue

Technical specifications
Filter Property Value
Vandal-proof Yes
Printed No
Wall thickness 1.5-4 mm
Installation diameter 13.6 mm
contact surface gold-plated
Breaking capacity 5 A/28 VDC
Actuator colour blue
Pin number 1 pole
Design round
illuminated No
Connection solder connection
Protection class IP67
Latching switching function groping
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
