IPR1SAD2L0Y | APEM
Vandal-proof pushbutton switch, 1 pole, black, illuminated (yellow), 4 A/12 V, mounting Ø 13.6 mm, IP67, IPR1SAD2L0Y
Unit Price (€ / pc.)
20.9083 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,045.42 € *
Price list
Quantity
Price per unit*
50 pcs.
20.9083 €
100 pcs.
20.0396 €
*incl. VAT plus shipping costs
Subject to prior sale

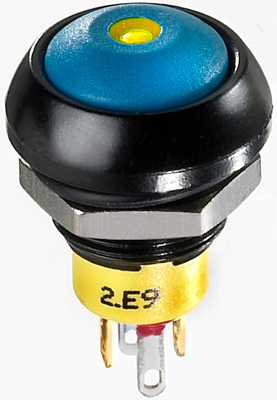

Panel switch, IPR1SAD2L0Y, APEM
The IPR1SAD2L0Y is a versatile and reliable choice for all your switching needs. Its sleek and round curved design adds a touch of elegance to any panel. With a variety of actuator types available, you can customize the switch to suit your specific preferences.
Features
- Latching action
- Compact
- Flat round actuator for optional marking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | Yes | |
| Wall thickness | 1.5-5.5 mm | |
| Protection class | IP67 | |
| Latching switching function | latching | |
| Farbe der Beleuchtung | yellow | |
| Breaking capacity | 4 A/12 V | |
| Installation diameter | 13.6 mm | |
| Vandal-proof | Yes | |
| Design | round | |
| Actuator colour | black | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
