IPR1SAD2L0G | APEM
Vandal-proof pushbutton switch, 1 pole, black, illuminated (green), 4 A/12 V, mounting Ø 13.6 mm, IP67, IPR1SAD2L0G
Unit Price (€ / pc.)
19.6469 € *
Standard delivery time from the manufacturer is: 12 Weeks

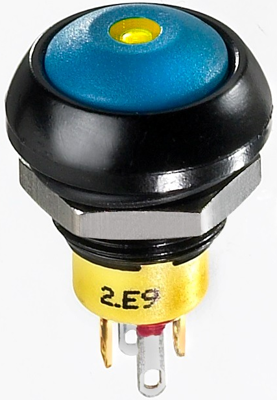

Panel switch, IPR1SAD2L0G, APEM
The IPR1SAD2L0G panel switch is a versatile product that falls under the category of Pushbutton Switches. It boasts a round curved design, giving it a sleek and modern appearance.
Features
- Latching action
- Compact
- Flat round actuator for optional marking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | latching | |
| Pin number | 1 pole | |
| Protection class | IP67 | |
| Farbe der Beleuchtung | green | |
| Vandal-proof | Yes | |
| Printed | No | |
| Connection | solder connection | |
| illuminated | Yes | |
| Breaking capacity | 4 A/12 V | |
| Installation diameter | 13.6 mm | |
| Design | round | |
| contact surface | gold-plated | |
| Actuator colour | black | |
| Wall thickness | 1.5-5.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
