IPR1SAD2 | APEM

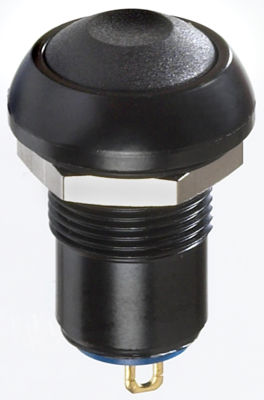

Vandal-proof pushbutton switch, 1 pole, black, unlit , 4 A/12 V, mounting Ø 13.6 mm, IP67, IPR1SAD2
Unit Price (€ / pc.)
17.8381 € *
Available: 62 pcs.
Total Price:
17.84 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8381 €
10 pcs.
15.7199 €
50 pcs.
14.6251 €
150 pcs.
13.9825 €
500 pcs.
13.2804 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton switch, IPR1SAD2, APEM
Pushbutton switch for harsh environments
FEATURES
- Actuator remains in the low position when “ON”
- Behind-panel depth less than 20 mm
- Flat round actuator for optional marking
Technical Data
- Switching function: Switch
- Colour: black
- Mounting diameter: 13,6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | No | |
| Wall thickness | 1.5-5.5 mm | |
| Protection class | IP67 | |
| Latching switching function | latching | |
| Breaking capacity | 4 A/12 V | |
| Installation diameter | 13.6 mm | |
| Vandal-proof | Yes | |
| Design | round | |
| Actuator colour | black | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
