8646A | APEM

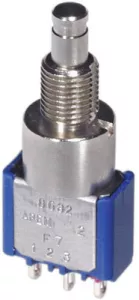

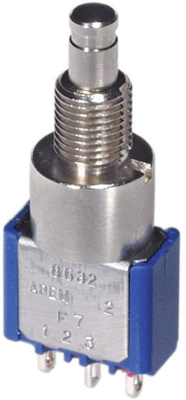

Pushbutton, 2 pole, black, unlit , 3 A/250 V, mounting Ø 6.35 mm, IP40, 8646A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.3899 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
738.99 € *
Price list
Quantity
Price per unit*
100 pcs.
7.3899 €
500 pcs.
7.0091 €
*incl. VAT plus shipping costs
Subject to prior sale

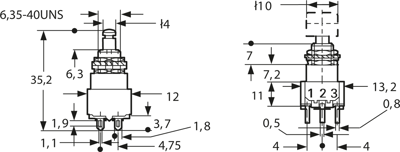

Miniature pushbuttons and switches, type APEM 8000.
Bushing mount; Contacts: silver. Breaking capacity: 3.0 A/250 VAC.6.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance (new condition): max. 10 mohm. Insulation resistance: 1000 Mohm on 500 VDC. Dielectric strength between terminals: 1000 VRMS/50 Hz. Stroke : 2.7 mm. Actuating torque: max. 1.25 N/m. Operating temperature: - 40 to +85 °C.
With solder lugs.
Technical attributes (type, number of poles, make action (ON), momentary on (M), contact version): 8646A, double-pole, ON-ON, silver
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 2 pole | |
| Actuator colour | black | |
| Breaking capacity | 3 A/250 V | |
| illuminated | No | |
| Printed | No | |
| Vandal-proof | No | |
| Connection | solder connection | |
| Design | plunger | |
| contact surface | silver-plated | |
| Installation diameter | 6.35 mm | |
| Protection class | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
