8632CD | APEM

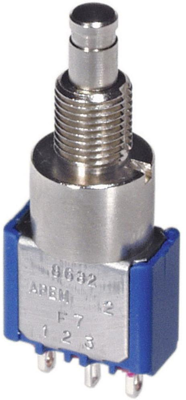

Pushbutton, 1 pole, blue, unlit , 0.4 A/20 V, mounting Ø 6.35 mm, 8632CD
Unit Price (€ / pc.)
14.3395 € *
Available: 62 pcs.
Total Price:
14.34 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3395 €
10 pcs.
12.6259 €
50 pcs.
11.7691 €
150 pcs.
11.2455 €
500 pcs.
10.6743 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature pushbuttons and switches, type APEM 8000.
Bushing mount; Contacts: gold-plated brass. Breaking capacity: max. 0.4 VA/20 V AC/DC. Contact resistance (new condition): max. 10 mohm. Insulation resistance: 1000 Mohm on 500 VDC. Dielectric strength between terminals: 1000 VRMS/50 Hz. Stroke : 2.7 mm. Actuating torque: max. 1.25 N/m. Operating temperature: - 40 to +85 °C.
With solder lugs.
Technical attributes (type, number of poles, make action (ON), momentary on (M), contact version): 8632CD, single-pole, ON-M, gold-plated brass
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | round | |
| contact surface | gold-plated | |
| illuminated | No | |
| Connection | solder connection | |
| Actuator colour | blue | |
| Printed | No | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Installation diameter | 6.35 mm | |
| Vandal-proof | No | |
| Breaking capacity | 0.4 A/20 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
