SQ96DE 2,5A | AMS

Name: Display instrument, 2.5 A, Front panel, Moving-iron mechanism, SQ96DE 2,5A
Brand: AMS
SKU: 15K402
Availability: InStock

Display instrument, 2.5 A, Front panel, Moving-iron mechanism, SQ96DE 2,5A

Order No.: 15K402

EAN: 4099891453466

MPN:

SQ96DE 2,5A

Series: SQ 96 DE

Image may differ

Key Specification:

Product type panel measuring device

Version rotary iron measuring device, class 1.5

Min. current 0 A

Max. current 2.5 A

AC or DC measurement possible AC

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

64.0815 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

64.08 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

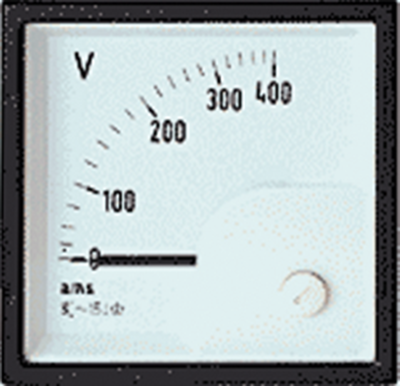

Display instruments, type AMS SQ 96 DE.

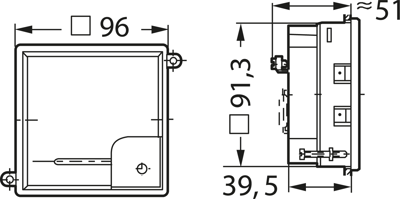

Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 96 x 96 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 92 x 92 mm

Type: 2.5 A

Technical specifications

Filter	Property	Value
	Height	96 mm
	Version	rotary iron measuring device, class 1.5
	Connection	screw connection
	Assembly	snap-in
	Width	96 mm
	Min. current	0 A
	Max. current	2.5 A
	AC or DC measurement possible	AC
	Product type	panel measuring device
