SQ48DE 25A | AMS
Display instrument, 25 A, Front panel, Moving-iron mechanism
Active
Product by AMS at Bürklin Elektronik

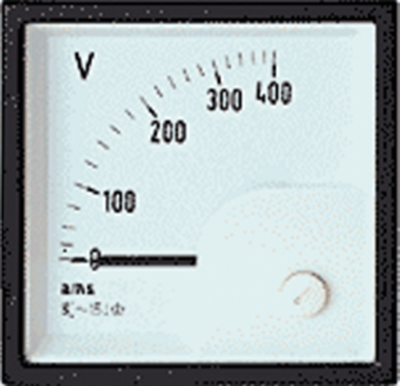

Display instruments, type AMS SQ 48 DE.

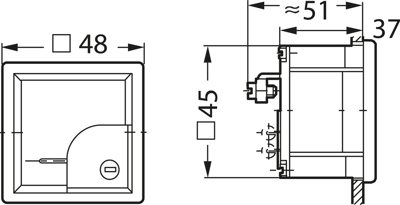

Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square panel mount housing to DIN 43700. Black 48 x 48 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 45.2 x 45.2 mm
Type: 25 A
| AC or DC measurement possible | AC | |
| Connection | screw connection | |
| Width | 48 mm | |
| Width of cut-out | 45.2 mm | |
| Height | 48 mm | |
| Height of cut-out | 45.2 mm | |
| Max. current | 25 A | |
| Assembly | snap-in |
| Country of origin | DE |
| Customs tariff number | 90303370 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
