Amphenol

T 3507 000 | Amphenol

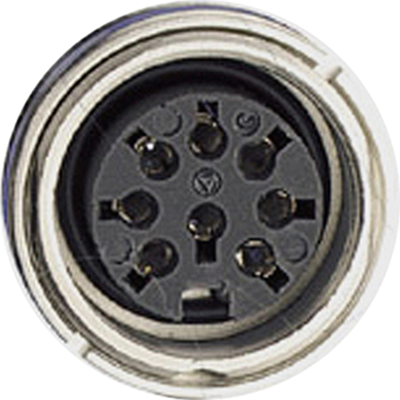

Panel socket, 8 pole, solder cup, screw locking, straight, T 3507 000

Order No.:  70F4374
MPN:
T 3507 000
Series:  C 091
EAN: 4099889736977
Amphenol
default L
default S
Images may differ
Unit Price (€ / pc.)
7.1400 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
7.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
7.1400 €
Description

Circular connector with screw lock, type Amphenol C 091 A.

With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 40. Operating temperatures: - 40 to +100 °C. Certification: UL.

Female receptacles, with ring nut fastener, type C 091 A.

Front mounting with screw lock.

Technical attributes (type, number of poles, rated voltage, insertion/removal force): T 3507 000, 8-pole, 100 V AC/DC, 60 N

Technical specifications
Version DIN panel socket
Additional parts equipped
Shell Material zinc die casting
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.5 mm²
Assembly panel mounting
Orientation straight
Pin number 8 pole
Type of locking screw locking
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Accessory

Order No.:

 70F4455

Manufacturer SKU:

 N 45 091 0001



Available: 0 pcs.
Leadtime: On Request **
21.67 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
21.6699 €
10 pcs.
19.4803 €
20 pcs.
17.2669 €

Order No.:

 70F4314

Manufacturer SKU:

 T 3504 001



Available: 0 pcs.
Leadtime: On Request **
18.33 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.3260 €
10 pcs.
16.1245 €
50 pcs.
15.0297 €
150 pcs.
14.3752 €
500 pcs.
13.6255 €
Variations
Search results: 1 item in 9 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Cable cross-section
Pin number
Additional parts
Shell Material
contact surface
Version
Type of locking
Assembly
Orientation
Contact connection
Panel socket, 5 pole, solder cup, screw locking, straight, T 3363 010
Order No.:
 70F4366
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3363 010
Total Price: 7.84 € *
1 pcs.
7.8421 €
10 pcs.
6.9020 €
50 pcs.
6.4260 €
Available: 2 pcs.
Leadtime: On Request **
0.5 mm²
5 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 6 pole, solder cup, screw locking, straight, T 3403 000
Order No.:
 70F4368
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3403 000
Total Price: 7.70 € *
1 pcs.
7.6993 €
10 pcs.
6.7949 €
50 pcs.
6.3189 €
150 pcs.
6.0452 €
500 pcs.
5.7358 €
Available: 7 pcs.
Leadtime: On Request **
0.5 mm²
6 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 3 pole, solder cup, screw locking, straight, T 3263 000
Order No.:
 70F4360
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3263 000
Total Price: 6.95 € *
1 pcs.
6.9496 €
10 pcs.
6.2475 €
100 pcs.
5.6406 €
Available: 40 pcs.
Leadtime: 2 Weeks **
0.5 mm²
3 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 5 pole, solder cup, screw locking, straight, T 3363 000
Order No.:
 70F4364
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3363 000
Total Price: 9.66 € *
1 pcs.
9.6628 €
10 pcs.
8.6870 €
50 pcs.
7.6398 €
100 pcs.
6.4974 €
Available: 0 pcs.
Leadtime: On Request **
0.5 mm²
5 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 8 pole, solder cup, screw locking, straight, T 3507 000
Order No.:
 70F4374
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3507 000
Total Price: 7.14 € *
50 pcs.
7.1400 €
Available: 0 pcs.
Leadtime: On Request **
0.5 mm²
8 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 7 pole, solder cup, screw locking, straight, T 3478 000
Order No.:
 70F4370
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3478 000
Total Price: 7.54 € *
50 pcs.
7.5446 €
Available: 0 pcs.
Leadtime: On Request **
0.5 mm²
7 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 12 pole, solder cup, screw locking, straight, T 3638 000
Order No.:
 70F4376
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3638 000
Total Price: 10.88 € *
105 pcs.
10.8766 €
Available: 0 pcs.
Leadtime: On Request **
0.25 mm²
12 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 7 pole, solder cup, screw locking, straight, T 3487 000
Order No.:
 70F4372
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3487 000
Total Price: 7.70 € *
50 pcs.
7.6993 €
Available: 0 pcs.
Leadtime: On Request **
0.5 mm²
7 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
Panel socket, 4 pole, solder cup, screw locking, straight, T 3303 000
Order No.:
 70F4362
Manufacturer:
 Amphenol
Manufacturer SKU:
 T 3303 000
Total Price: 5.11 € *
50 pcs.
5.1051 €
Available: 0 pcs.
Leadtime: On Request **
0.5 mm²
4 pole
equipped
zinc die casting
silver-plated
DIN panel socket
screw locking
panel mounting
straight
solder cup
*incl. VAT plus shipping costs
**Subject to prior sale
Images may differ
