Circular connector with screw lock, type Amphenol C 091 D.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Seal material: Neoprene. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 67/65. Operating temperatures: –40 to +100 °C. Certification: UL.

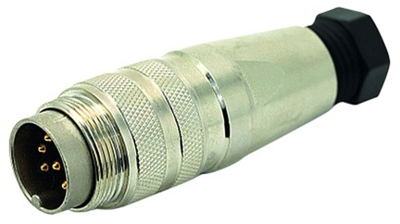

Male cable connectors, straight, for cable diameters from 4.0 to 6.0 mm, type C 091 D.
Technical attributes (type, number of poles, rated voltage, insertion/removal force): C091 31H006 100 2, 6-pole, 300 V AC/DC, 50 N
Version | DIN plug | |
Additional parts | equipped | |
Shell Material | zinc die casting | |

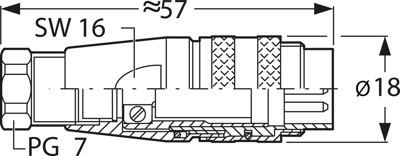

Cable diameter | 4 to 6 mm | |
Contact connection | solder cup | |
contact surface | silver-plated | |
Cable cross-section | 0.5 mm² | |
Assembly | cable assembly | |
Orientation | straight | |
Pin number | 6 pole | |
Type of locking | screw locking |
Country of origin | CN |
Customs tariff number | 85369010 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
Order No.:
70F4444
Manufacturer SKU:
C091 31N006 100 2
Order No.:
70F4408
Manufacturer SKU:
C091 31D006 100 2
