C016 20F003 100 12 | Amphenol

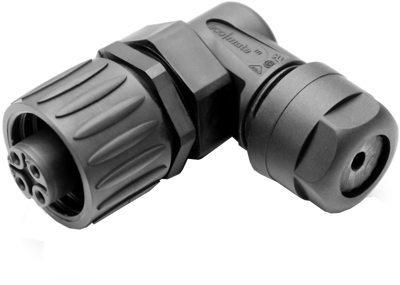

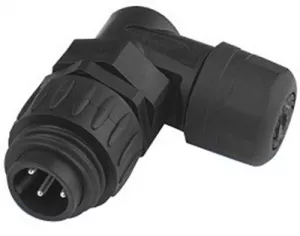

Jack, 4 pole, screw connection, Screw locking, angled, C016 20F003 100 12
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 400 V. Current rating (at +55 °C): 16 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 15 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: 0.75 to 2.5 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 to +100 °C.
Female cable plugs, angled, type eco mate.
Strain relief by means of cage cable clamp for cable diameters from 6.0 to 12.5 mm. Crimp contacts are available on separate order.
Technical attributes (type, number of poles, connection type): C016 20 F003 100 12, 3 + PE, screw terminals
| Version | jack | |
| Shell Material | polyamide | |
| Cable diameter | 6 to 12.5 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75-2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Type of locking | Screw locking |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
