966066-1 | AMP

Insulated Wire end ferrule, 0.25 mm², 10 mm/6 mm long, DIN 46228/4, light blue, 966066-1

Order No.: 39P3080
EAN: 4099889617863
MPN:
966066-1
AMP

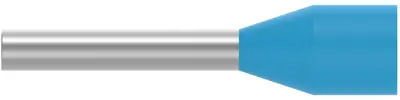

966066-1 AMP Wire-end Ferrules Image 1

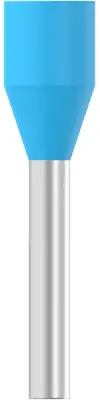

966066-1 AMP Wire-end Ferrules Image 2

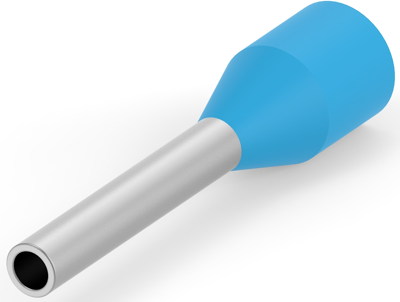

966066-1 AMP Wire-end Ferrules Image 3

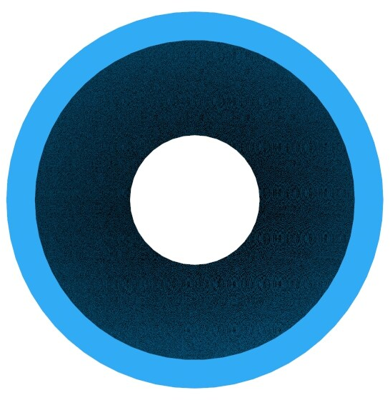

966066-1 AMP Wire-end Ferrules Image 4

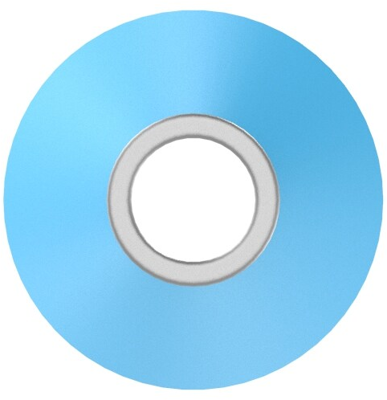

966066-1 AMP Wire-end Ferrules Image 5
Image may differ
Unit Price (€ / pc.)
0.0940 € *
Available: 1,331 pcs.
Leadtime: 10 Weeks **
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0940 €
100 pcs.
0.0857 €
500 pcs.
0.0762 €
1000 pcs.
0.0595 €
*incl. VAT plus shipping costs
**Subject to prior sale

Wire ferrule, 966066-1, TE

Wire Ferrules allow the easy and reliable connection of flexible leads with screw or spring clamps.

The individual wire of the script leads are held by the wire ferrule for this specific wire size and are crimped with AMP precision tools to form a gas-tight connection.

Technical specifications
Colour light blue
Material Insulation polypropylene
Isolated Yes
Contact material copper
Length 10 mm
Cable cross-section 0.25 mm²
max. operating temperature 105 °C
Standard number DIN 46228/4
Pin lenght 6 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
