T4171030012-001 | AMP

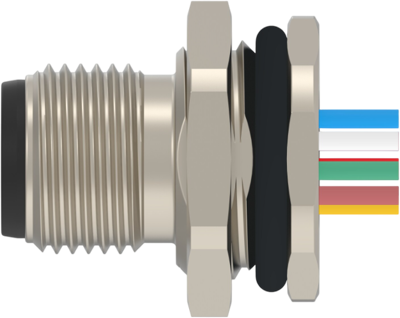

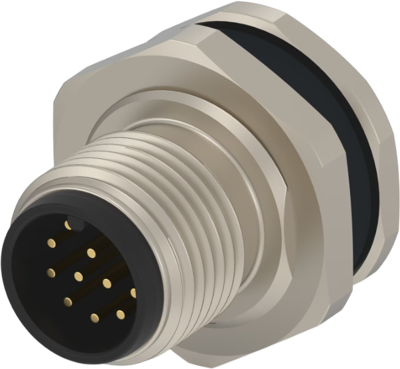

Panel plug, M12, 12 pole, strand connection, screw locking, straight, T4171030012-001
Order No.: 59F688
MPN:
T4171030012-001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
25.8468 € *
Available in 12 Days: 96 pcs. - if ordered today
Total Price:
25.85 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8468 €
10 pcs.
24.2284 €
25 pcs.
22.8004 €
50 pcs.
21.5390 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, T4171030012-001, AMP
12 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 12 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
