T4171020008-001 | AMP

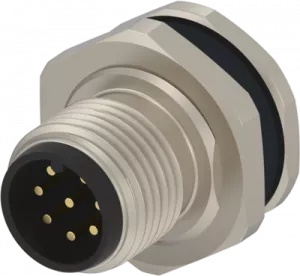

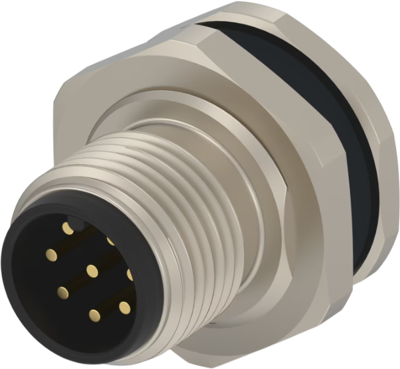

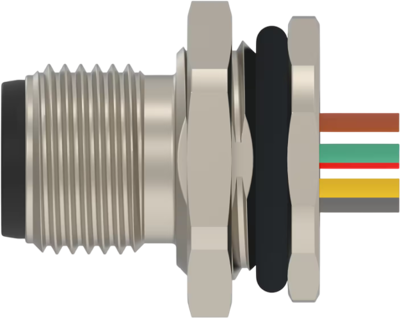

Panel plug, M12, 8 pole, strand connection, screw locking, straight, T4171020008-001
Order No.: 59F689
MPN:
T4171020008-001
Unit Price (€ / pc.)
20.3252 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
20.33 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3252 €
10 pcs.
18.8734 €
25 pcs.
17.6120 €
50 pcs.
16.0055 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, T4171020008-001, AMP
8 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
