3-1571552-6 | AMP
IC socket, 24 pole, pitch 2.54 mm (7.62 mm), copper beryllium for DIL-IC
No longer available from manufacturer
Unit Price (€ / pc.)
3.4748 € *
Available: 2,160 pcs.
Leadtime: On Request **
Total Price:
3.47 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4748 €
10 pcs.
3.1178 €
50 pcs.
2.8084 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale

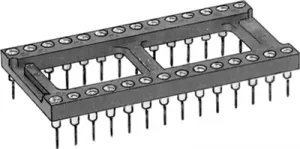

IC socket, 3-1571552-6, AMP
With sealed contact socket (to prevent the ingress of solder and flux) and open frame; Insulation: thermoplastic polyester to UL 94 V-0. Operating temperatures: –55 to +105 °C. Contact rating: 3.0 A. Socket contacts: gold-plated beryllium copper, tinned sleeve. Spring: four fingers type, gold-plated.
Technical attributes (type, number of poles, dimensions): 824-AG31D-ESL, 24-pole, A 30.48, B 7.62, C 10.16 mm
Technical specifications
| Version | IC socket | |
| Width | 10.16 mm | |
| Suitable for | DIL-IC | |
| Height | 7.74 mm | |
| Contact material | copper beryllium | |
| Length | 30.48 mm | |
| Material | thermoplastic | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated current | 3 A | |
| Pin number | 24 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
