2-520403-2 | AMP

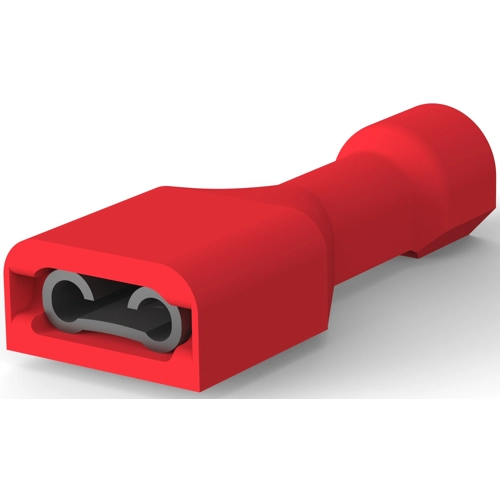

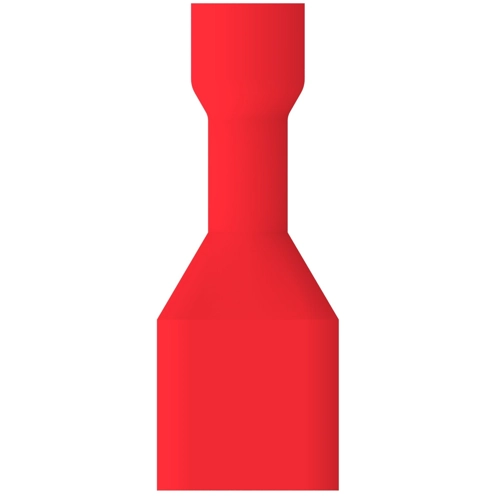

Insulated flat plug sleeve, 4.75 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, red, 2-520403-2
Unit Price (€ / pc.)
0.2380 € *
Available in 5 Days: 15,170 pcs. - if ordered today
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2380 €
250 pcs.
0.2202 €
500 pcs.
0.2035 €
1000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 2-520403-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 -0.82 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 2700, Packaging Method: Strip/Reel, Barrel Color: Red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Version | flat plug sleeve | |
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 22 to 18 | |
| Suitable for | 4.75 x 0.81 mm | |
| Length | 21.75 mm | |
| Insulation colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
| Original Packaging | Reel with 2,700 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
