926476-8 | AMP

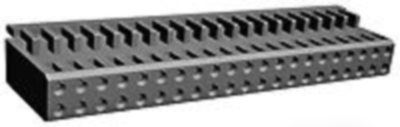

Socket housing, 16 pole, pitch 2.54 mm, straight, black, 926476-8
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.0698 € *
Available in 12 Days: 78 pcs. - if ordered today
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7723 €
50 pcs.
3.5105 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale

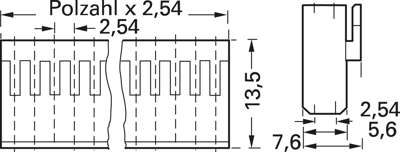

Bare socket headers for pin headers with protective collar, type Modu IV.
With 2.54 mm grid, dual-row; Housing: thermoplastic polyester GV, black, compliant with UL 94 V-0.
Type: 0-0926476-8
Number of poles: 2 x 8-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 16 pole | |
| Grid | 2.54 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
