926476-3 | AMP

Socket housing, 6 pole, pitch 2.54 mm, straight, black, 926476-3

Order No.: 59F4121
EAN: 4099891006037
MPN:
926476-3
0-0926476-3
Series: AMPMODU

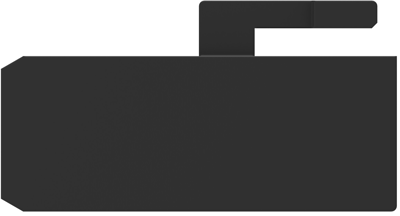

926476-3 AMP PCB Connection Systems Image 1

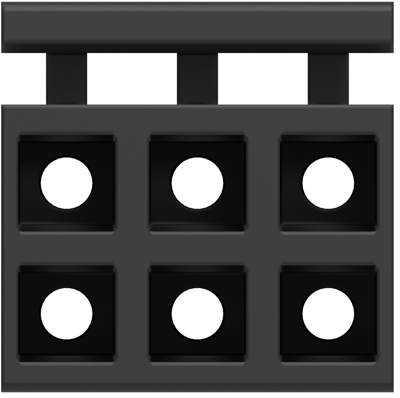

926476-3 AMP PCB Connection Systems Image 2

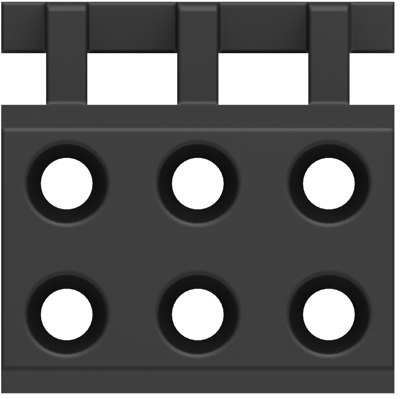

926476-3 AMP PCB Connection Systems Image 3

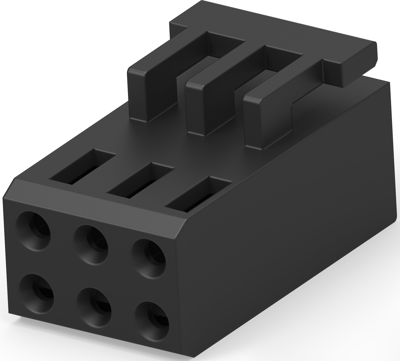

926476-3 AMP PCB Connection Systems Image 4

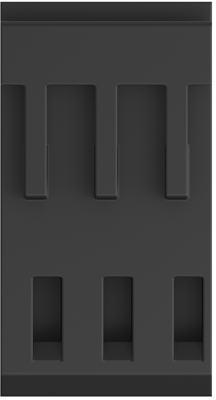

926476-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available: 334 pcs.
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
100 pcs.
0.9163 €
500 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers for pin headers with protective collar, type Modu IV.

With 2.54 mm grid, dual-row; Housing: thermoplastic polyester GV, black, compliant with UL 94 V-0.

Type: 0-0926476-3

Number of poles: 2 x 3-pole

Technical specifications
Colour black
Rated current 3 A
Grid 2.54 mm
Pin number 6 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
