826925-4 | AMP
Pin header, 8 pole, pitch 2.54 mm, straight, green, 826925-4
Unit Price (€ / pc.)
0.7021 € *
Available: 899 pcs.
Leadtime: 17 Weeks **
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7021 €
20 pcs.
0.6426 €
100 pcs.
0.5593 €
200 pcs.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale

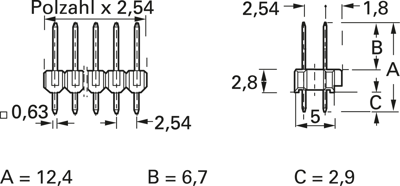

Tinned, pin length B 6.7 mm, type ..-0826.
with 2.54 mm grid. Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.
Tinned pins (2.0 µm tin over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm.
Type: 0-0826925-4, 2 x 4-pole
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Breakable | Yes | |
| Colour | green | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated current | 5 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
